제품 상세 정보:
|
| 제품 이름: | 탁도 센서 | 측정 기술: | 적외선 이중 빔 산란 빛 |
|---|---|---|---|
| 측정 범위: | 0.01 ~ 4000ntu | 해결: | ± 2% |
| 정확성: | 측정 된 값의 5.0% 또는 0.3NTU보다 낫습니다. | 의사소통: | RS485 MODBUS-RTU |
| 응답 시간: | T90 s 60 년대 | 작업 압력: | ≤4bar |
| 작동 온도: | 0 ~ 45 ℃ | 쉘 재료: | 표준 SS 316L |
| 보호 등급: | IP68 | 케이블: | 10 미터 |

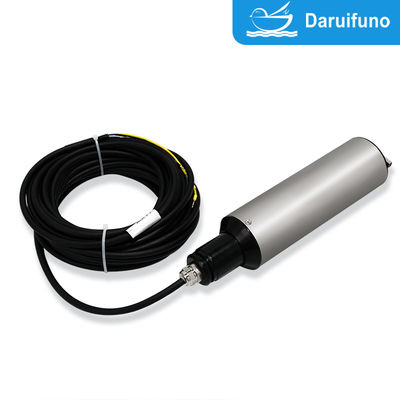

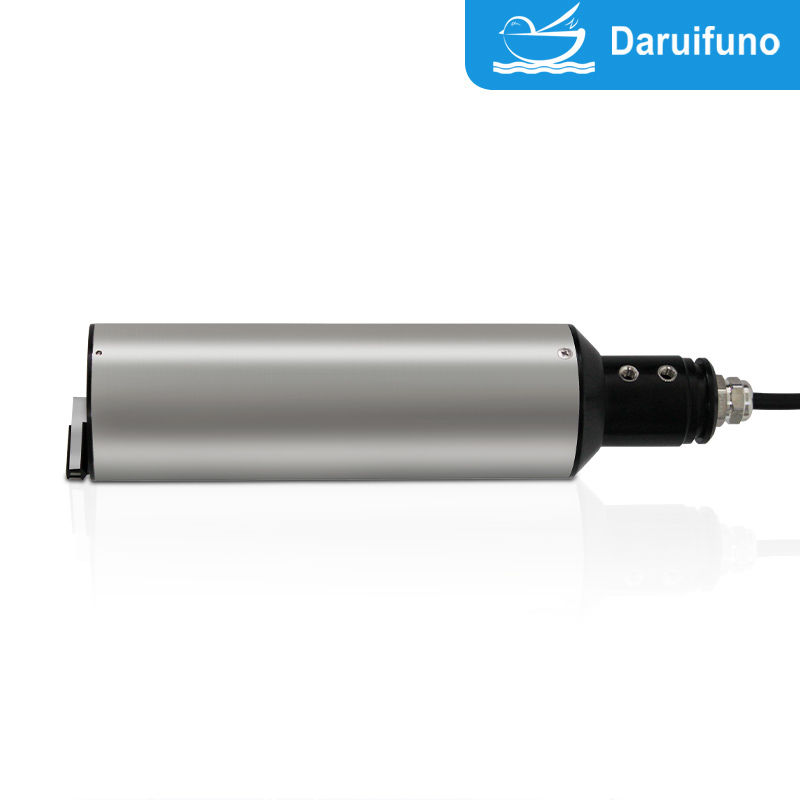

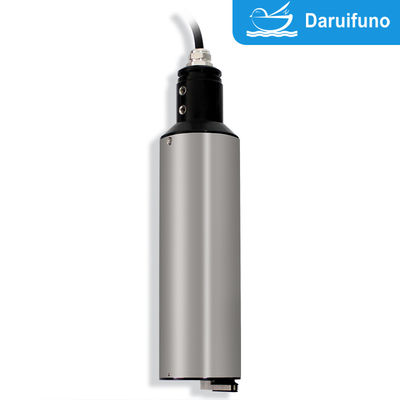

| Sensor Information | Infrared Turbidity Sensor |
|---|---|
| Model | OPTU311 (with brush) |
| Measuring Technology | Infrared scattering principle |
| Measuring Range | 0.01~4000NTU |
| Resolution | 0.01NTU |
| Accuracy | ±2% of measured value or ±0.1NTU (whichever is greater) |
| Communication | RS485 MODBUS-RTU |
| Response Time | T90 < 60s |
| Calibration Method | Multi-point calibration; factor correction |
| Working Pressure | ≤4Bar |
| Sample Flow Rate | No dependency |

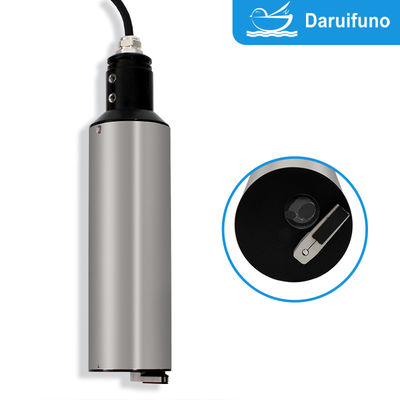

| Cleaning Method | Equipped with cleaning brush, automatic cleaning under water |
| Working Temperature | 0~45°C (no freezing) |
| Storage Temperature | 0~60°C (no freezing) |
| Main Material | SUS 316L stainless steel (Titanium customized option) |
| Dimension | Φ60mm*L265mm |
| Mounting | Horizontal installation (special accessories required) |
| Protection Grade | IP68 |
| Power Supply | 9~24 V DC |
| Power Consumption | 1.5W |
| Weight | 800g |
| Cable | Standard 10 meters |
Precision Turbidity Sensor: Accurate & Reliable Water Monitoring
