제품 상세 정보:
|
| 제품 이름: | pH 센서 | 측정 범위: | 0~14pH |
|---|---|---|---|
| 0 (e0) ph: | ± 0.25ph | 싸구려 기성복%: | ＞ 95% |
| 작동 압력: | 0-6바 | 작업 온도: | 0~100℃ |
| 온도 단위: | PT100, PT1000, NTC10K 맞춤형 | 설치 치수: | PG13.5 |
| 꼬리 리드: | 적분 또는 분할 | 철사: | 표준 5 미터 |
| 애플리케이션: | 강산 및 알칼리 | ||
| 강조하다: | 0~14pH Measuring Range pH Sensor,PT100/PT1000/NTC10K Customizable Industrial pH Electrode,PG13.5 Installation Thread Analog pH Sensor |
||

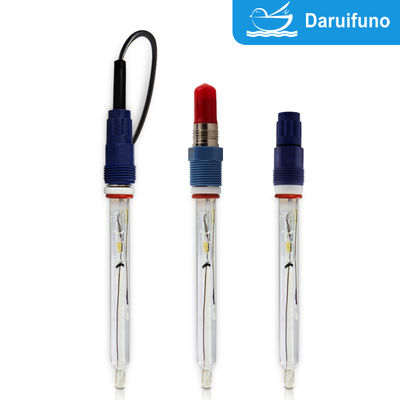

Daruifuno brand High-Performance Industrial pH Electrode ASP120E for Extreme Conditions Measuring pH in harsh industrial environments can be a major challenge, as standard sensors often fail under extreme temperatures, high pressures, or in corrosive media. Our industrial pH electrode is specifically designed to overcome these obstacles, providing exceptional performance, durability, and accuracy for reliable process control.
This robust pH sensor features a broad measuring range of 0 to 14 pH, making it suitable for a wide variety of applications. At its core, a low-impedance cylindrical glass membrane ensures fast and stable response times. The advanced Ag/AgCl reference system, with a double salt bridge and KCl gel, prevents sample contamination, ensuring the probe remains stable and reliable even in conditions where traditional single-junction electrodes are prone to fouling.
Engineered for durability, this industrial pH electrode operates continuously in temperatures from 0°C to 80°C and pressures up to 6 bar. For more demanding applications, it can withstand temperatures up to 100°C for continuous periods of less than 60 minutes, with a high-temperature version rated for up to 135°C. It has been rigorously tested to endure over 40 high-temperature cycles, proving its long-term reliability.
Key Features and Benefits:
Exceptional Accuracy: A slope percentage of more than 95% ensures high sensitivity and precise pH readings.
Integrated Temperature Compensation: Customizable options including PT100, PT1000, or NTC10K sensors provide accurate measurements across fluctuating temperatures.
Chemical Resistance: Constructed from durable glass with a unique dot-shaped ceramic frit, the electrode resists chemical attacks from highly acidic or alkaline media.
Easy Installation: A standard 12mm diameter and PG13.5 mounting thread allow for simple and seamless integration into existing systems.

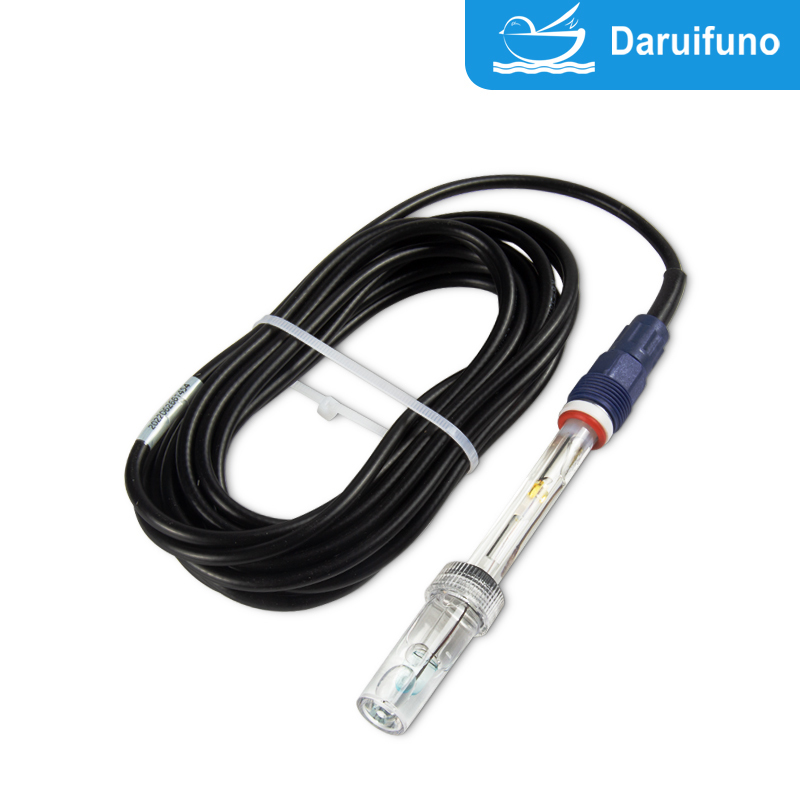

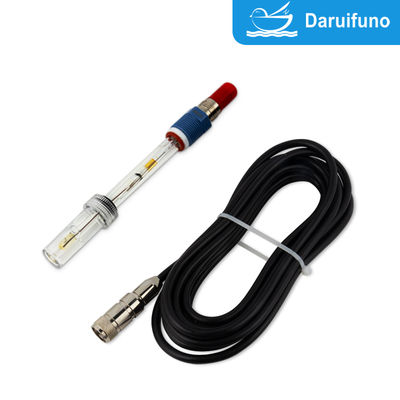

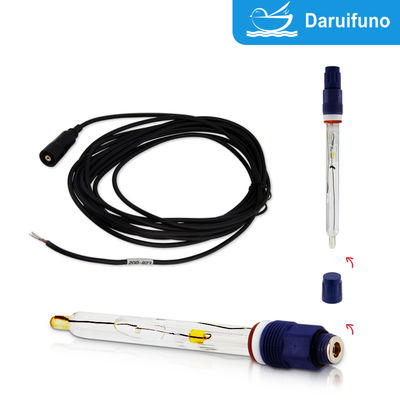

Flexible Setup: Integral or split leads offer versatile installation options to suit your specific needs.
This durable pH electrode is the ideal choice for accurate and reliable pH measurement in the most demanding industrial processes.
|
Model |
ASP120E |
ASP121E |
ASP122E |
ASP123E |
ASP124E |
|
Measuring Object |
PH |
||||
|
Measuring Range |
0~14pH |
||||
|
Indicator Electrode |
low impedance cylindrical glass membrane |
||||
|
Reference System |
Ag/AgCl reference electrode, double salt bridge, KCl gel |
||||
|
Electrode Material |
Glass+Dot-shaped ceramic hole |
Glass+Porous tetrafluoro ring |
Glass+ceramic sand core |
||
|
Working Pressure |
Medium and low temp environment: max. 0~6bar High temp environment: 0~3bar |
||||
|
Working Temp. |
Medium and low temp. environment: 0~80℃, continuous work High temp. environment: 80~100℃, continuous work for less than 60 minutes
Customzied as below : Medium and low temp. Env.: 0~100℃, continuous work High temp. Env.: 100~135℃, continuous work < 60 mins High temp. Env. work more than 40 times (clean water test env.) |
||||
|
Sample Flow Rate |
0.5 m/s ≥ flow velocity ≥ 0.001 m/s |
||||
|
Zero (E0) |
±0.25pH |
||||
|
SLOP% |
＞95% |
||||
|
Temperature Unit |
PT100, PT1000, NTC10K customized |
||||
|
Dimension |
Standard: diameter 12mm/Length 120mm (customized) |
||||
|
Installation Thread |
PG13.5 |
||||
|
Tail Lead |
Integral or split |
||||
|
Application |
Strong acid and alkali |
Normal temp. pure water >5μS/cm |
Harsh industrial process* |
Normal temp. desulfurization or viscous slurry |
Hydrofluoric acid with concentration ≤4000ppm |
| Model | ASP125E | ASP126E | ASP127E | ASR120E | ASP128E |
| Measuring Object | PH | ORP | PH | ||
| Measuring Range | 0~14pH | ±2000mV | 0~14pH | ||
| Indicator Electrode | low impedance cylindrical glass membrane | Platinum | glass membrane | ||
| Reference System | Ag/AgCl reference electrode, double salt bridge, KCl gel | ||||
| Electrode Material | Glass+ceramic sand core | ||||
| Working Pressure |
Medium and low temp environment: max. 0~6bar High temp environment: 0~3bar |
max. 0~6bar | |||
| Working Temp. |
Medium and low temp. environment: 0~80℃, continuous work High temp. environment: 80~100℃, continuous work for less than 60 minutes
Customzied as below : Medium and low temp. Env.: 0~100℃, continuous work High temp. Env.: 100~135℃, continuous work < 60 mins High temp. Env. work more than 40 times (clean water test env.) |
-15~80℃, continuous work | |||
| Sample Flow Rate | 0.5 m/s ≥ flow velocity ≥ 0.001 m/s | ||||
| Zero (E0) | ±0.25pH | ||||
| SLOP% | ＞95% | ||||
| Temperature Unit | PT100, PT1000, NTC10K customized | ||||
| Dimension | Standard: diameter 12mm/Length 120mm (customized) | ||||
| Installation Thread | PG13.5 | ||||
| Tail Lead | Integral or split | ||||
| Application |
Strong acid and alkali |
Harsh conditions &high pollution |
Fermentation process |
High temp. Industrial process |
Low temp. |
The ASP120E glass pH sensor offers ultimate flexibility with custom mounting accessories for any industrial environment:
The optional PTFE (Teflon) sheath provides exceptional corrosion resistance in harsh chemical environments. Featuring 3/4" NPT threads for easy attachment to mounting accessories, it ensures seamless integration across various applications.
The ASP120E pH sensor serves critical monitoring needs across multiple industries:
